When to Use Cable Tray: Benefits & Applications

Cable trays are a type of cable management system used to support insulated electrical cables used for power distribution, control, and communication. They offer a framework for managing cables in an organized manner, which is particularly useful in industrial and commercial settings. Unlike conventional conduit systems, cable trays provide a more accessible and adaptable solution for large-scale cable management. This accessibility not only simplifies cable installation but also facilitates future modifications and maintenance. Additionally, cable trays help minimize the aesthetic impact of complex wiring systems by keeping cables neatly contained and out of sight.

Tipos de bandejas portacables

Before diving into when to use cable trays, it’s essential to understand the different types available. Each type of tray has distinct characteristics tailored to specific applications and environments. The most common types include:

1. Escalera Bandejas portacables: These are ideal for applications where heavy-duty cables need support. They allow air circulation and easy cable maintenance. Their robust design makes them suitable for long spans and high-load environments, such as industrial facilities.
2. Bandejas portacables de fondo sólido: These offer complete cable protection and are suited for sensitive cables that require shielding from radio frequency interference. Solid bottom trays are often used in environments where electromagnetic interference is a concern, providing an additional layer of security for delicate electronic cables.
3. Trough Cable Trays: Used for moderate cable support, they provide excellent cable protection while allowing some ventilation. The partially enclosed design makes them a good compromise between solid bottom and ladder trays, offering both protection and airflow.
4. Channel Cable Trays: Best for light-duty cable support, these are often used in smaller installations. Their compact size makes them ideal for use in tight spaces or where only a few cables need to be managed.
5. Bandejas portacables de malla metálica: These are highly flexible and can be easily cut and shaped, making them suitable for complex installations. The open grid design allows for excellent airflow and quick cable identification, which is particularly advantageous in data centers and IT environments.

Benefits of Using Cable Trays

Cable trays offer numerous advantages that make them an attractive option for many applications. Their design and functionality cater to a variety of needs, ensuring that cables are managed efficiently and safely.

Efficient Cable Management

Cable trays provide an organized way to run cables, which simplifies installation and future maintenance. Keeping cables grouped reduces the complexity of the wiring system and minimizes the risk of tangling or damage. This organization also facilitates troubleshooting and repairs, as cables can be easily identified and accessed. Moreover, cable trays can accommodate a wide range of cable types and sizes, making them a versatile choice for any project.

Seguridad reforzada

Using cable trays can significantly enhance safety by reducing the likelihood of electrical fires caused by overheated cables. The open design of many trays allows for proper ventilation, helping to dissipate heat. This ventilation is crucial in preventing heat buildup, which can lead to cable degradation and potential fire hazards. In addition, cable trays elevate cables off the ground, protecting them from physical damage and moisture, which further enhances safety.

Flexibilidad y adaptabilidad

Cable trays are highly adaptable and can accommodate changes in the wiring system. Whether you need to add, remove, or reroute cables, doing so is straightforward with a cable tray system. This flexibility is particularly valuable in dynamic environments where technology and infrastructure requirements are constantly evolving. Cable trays can be easily modified to meet new demands without the need for extensive rework or additional components.

Relación coste-eficacia

Compared to conduit systems, cable trays are often more economical. They require less labor to install and maintain, leading to reduced overall costs. The open design of cable trays also means that fewer materials are needed, contributing to lower initial expenses. Over time, the ease of maintenance and ability to quickly adapt to changes can result in significant cost savings, making cable trays a financially sound investment.

When to Use Cable Trays

Cable trays are not only a practical solution for managing cables but also a strategic choice for optimizing electrical systems in various settings. Understanding when to use cable trays can ensure that you leverage their full potential.

Industrial Environments

Cable trays are particularly beneficial in industrial settings where large volumes of cables need to be routed efficiently. They can support heavy cables and withstand harsh environmental conditions. In factories and manufacturing plants, cable trays provide a durable solution that can handle the demands of heavy machinery and equipment. Their ability to organize and protect cables in such rugged conditions makes them indispensable in maintaining operational efficiency and safety.

Edificios comerciales

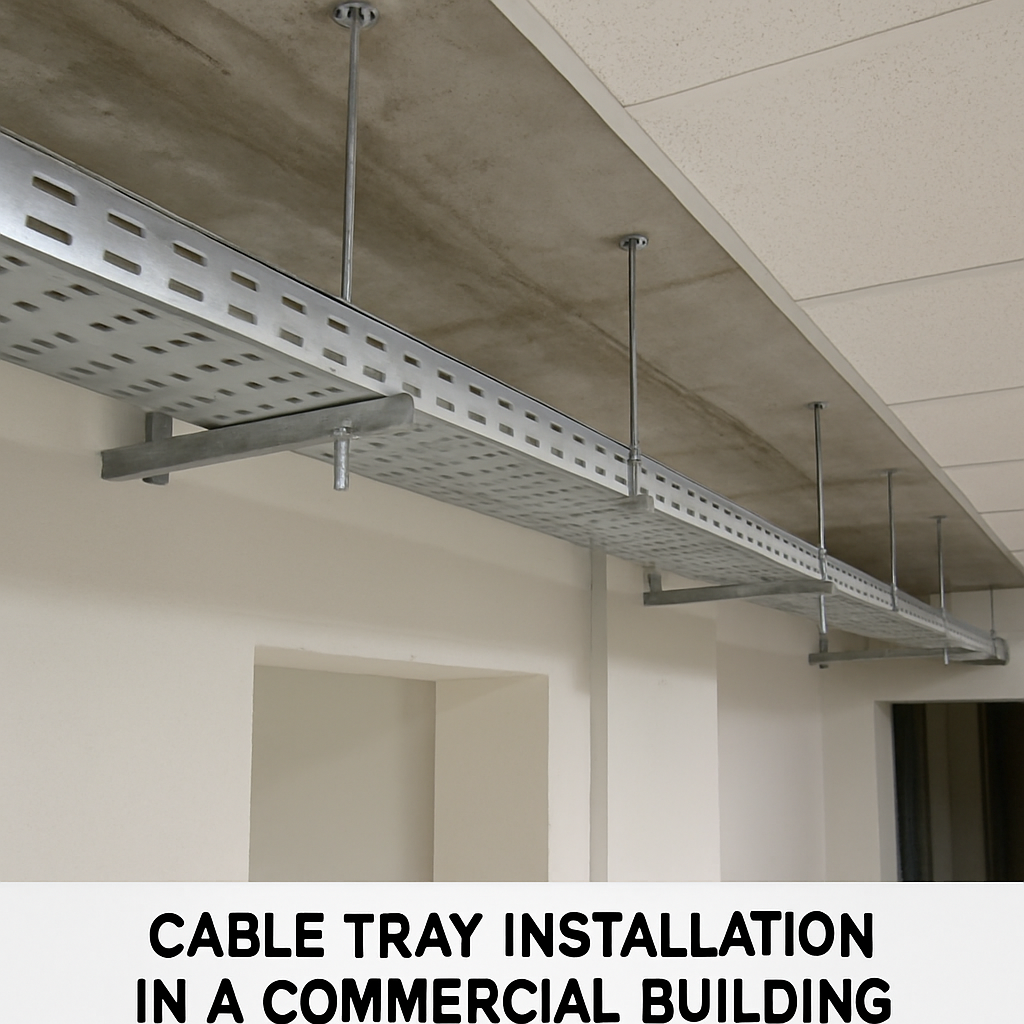

In commercial buildings, cable trays provide a clean and efficient way to manage wiring systems. They are ideal for settings where aesthetics are important, as they can be concealed in ceilings or floors. Beyond aesthetics, cable trays in commercial spaces support the complex wiring needs of modern offices, such as power distribution, lighting, and HVAC systems. Their use can simplify the integration of new technologies and streamline the overall building design.

Centros de datos

The high volume of cables in data centers makes cable trays a preferred choice. They offer easy access for maintenance and upgrades, essential in fast-paced environments. The structured approach to cable management helps maintain optimal airflow, which is crucial for cooling high-performance servers and network equipment. Additionally, the adaptability of cable trays allows data centers to scale and reconfigure their setups to meet growing demands without significant downtime.

Retrofitting and Upgrading

Cable trays are advantageous in retrofit projects where existing wiring needs to be upgraded or reconfigured. Their flexibility allows for seamless integration with current systems. This adaptability is especially beneficial in older buildings where space constraints and existing infrastructure present challenges. Cable trays provide a straightforward solution for modernizing electrical systems without the need for extensive renovations, making them a cost-effective choice for upgrades.

Consideraciones sobre la instalación

While cable trays offer many benefits, proper installation is crucial to maximizing their advantages. Attention to detail during installation ensures the system’s long-term performance and reliability.

Planning the Layout

Before installation, it’s essential to plan the cable tray layout. Consider the cable types, load requirements, and environmental factors to ensure the tray system will meet your needs. A well-thought-out layout not only optimizes space but also enhances the system’s efficiency and accessibility. Take into account future expansion needs and potential obstacles to avoid costly modifications later on.

Elegir el material adecuado

Cable trays come in various materials, including aluminum, steel, and fiberglass. The choice of material depends on the environment where the tray will be used. For instance, fiberglass is ideal for corrosive environments, while aluminum is preferred for its lightweight and non-magnetic properties. Steel trays offer high strength and durability, making them suitable for heavy-duty applications. Selecting the appropriate material ensures that the cable tray system can withstand environmental stresses and meet specific project requirements.

Supporting the Cable Tray

Proper support is crucial to prevent sagging and ensure the tray’s stability. The support system should be designed based on the tray’s load capacity and span. Adequate support structures, such as brackets and hangers, must be strategically placed to distribute the weight evenly and maintain the tray’s alignment. Regular inspections and maintenance of the support system are also essential to address any issues that may arise over time.

Compliance with Standards

Ensure that the cable tray installation complies with local electrical codes and standards. This ensures safety and reliability. Compliance not only protects against potential legal liabilities but also guarantees that the installation meets industry best practices. Working with certified professionals during the installation process can help ensure that all regulatory requirements are met and that the system is designed for optimal performance.

Cable Tray Applications

Cable trays find applications across a wide range of industries due to their versatility and efficiency. Understanding these applications highlights the diverse uses of cable trays in modern infrastructure.

Power Distribution

Cable trays are commonly used for power distribution in both industrial and commercial settings. They provide a safe and efficient way to route power cables. By maintaining organized pathways, cable trays minimize electrical losses and ensure reliable power delivery to various components. This organization is especially critical in large facilities where consistent power distribution is vital for operations.

Telecommunications

In telecommunications, cable trays manage the vast number of data cables required for network operations. They ensure organized and accessible cabling. This organization is essential for maintaining high-speed data transmission and minimizing signal interference. Cable trays also facilitate quick upgrades and repairs, which are crucial in maintaining uninterrupted communication services.

Process Control Systems

For process control systems, cable trays help manage control cables, providing clear pathways and reducing interference. The structured management of control cables is crucial for maintaining accurate and reliable system operations. In industries such as manufacturing and automation, where precise control is necessary, cable trays play a vital role in ensuring system integrity and efficiency.

Conclusión

Cable trays are a versatile and efficient solution for cable management in various applications. Their benefits, including enhanced safety, flexibility, and cost-effectiveness, make them a valuable asset in industrial, commercial, and data center environments. By understanding when to use cable trays and considering the installation factors, you can optimize your electrical system setup and ensure a reliable and organized wiring solution.

By choosing the right type and material, planning your layout, and following installation guidelines, you can effectively implement cable tray systems to meet your needs. Whether you’re working on a new build or upgrading an existing system, cable trays offer a robust solution for managing your electrical cables. Their ability to adapt to different environments and requirements makes them an integral part of modern electrical infrastructure, ensuring that systems remain efficient, safe, and future-proof.
