Escada para bandeja de cabos: Gerenciamento eficiente de cabos

In today’s world of ever-evolving technology, managing cables in an organized manner is essential for efficiency and safety. Enter the cable tray ladder—a vital component in cable management solutions. This article will delve into what a cable tray ladder is, its specifications, and how it can be effectively installed to optimize cable organization.

A cable tray ladder is a type of cable management system designed to support insulated electric cables used for power distribution and communication. Unlike traditional conduit systems, the ladder cable tray allows for better airflow and easy access to the cables, making maintenance and organization much more straightforward.

Cable Ladder Specifications

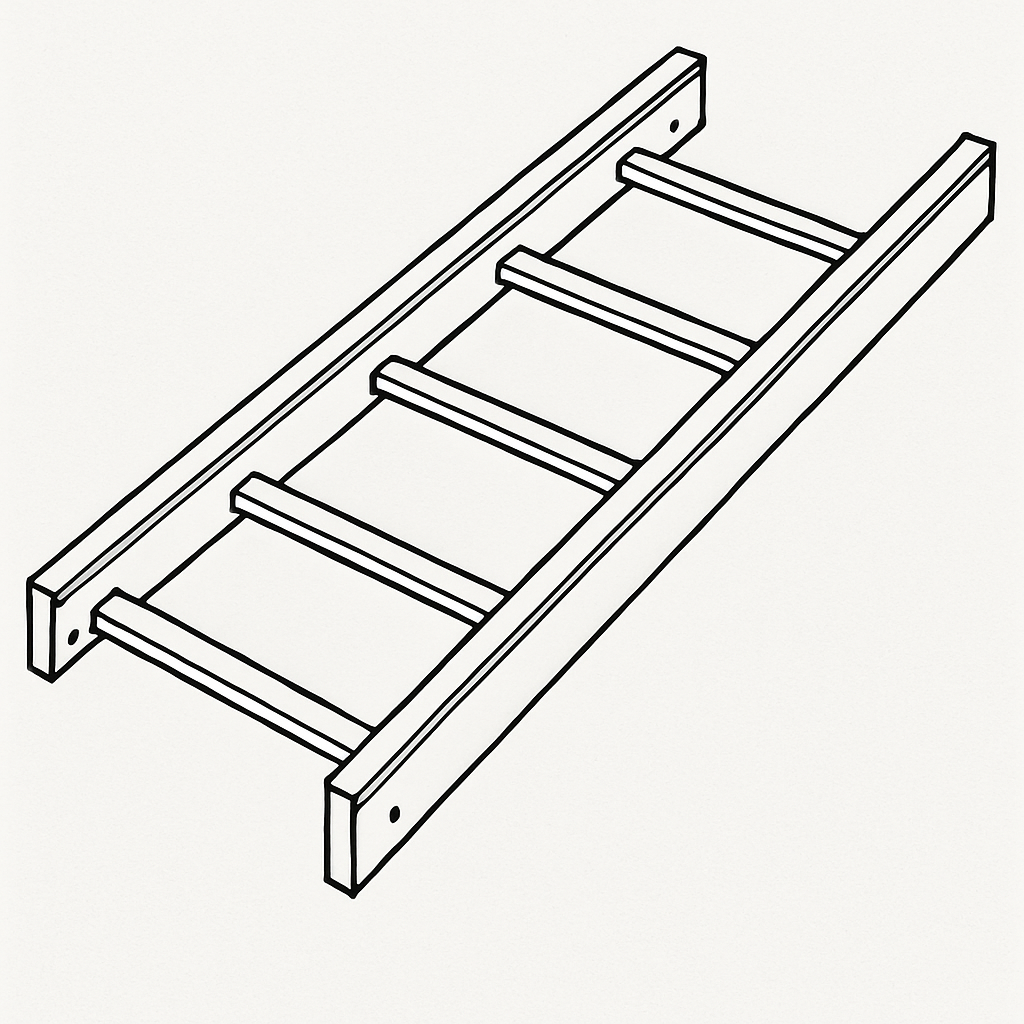

When selecting a ladder-type cable tray, it’s crucial to understand its specifications. Typically, these trays are constructed from materials like steel, aluminum, or fiberglass, providing durability and resistance to environmental factors. The ladder cable tray features two side rails connected by rungs, resembling a ladder, hence the name. This design supports heavy cable loads while allowing for flexibility in arranging and routing cables.

Size and Load Capacity

The size of a cable tray ladder varies, depending on its intended use. They come in different widths and heights to accommodate varying numbers of cables. The load capacity is another critical specification, ensuring the tray can handle the weight of all the cables without sagging or failing.

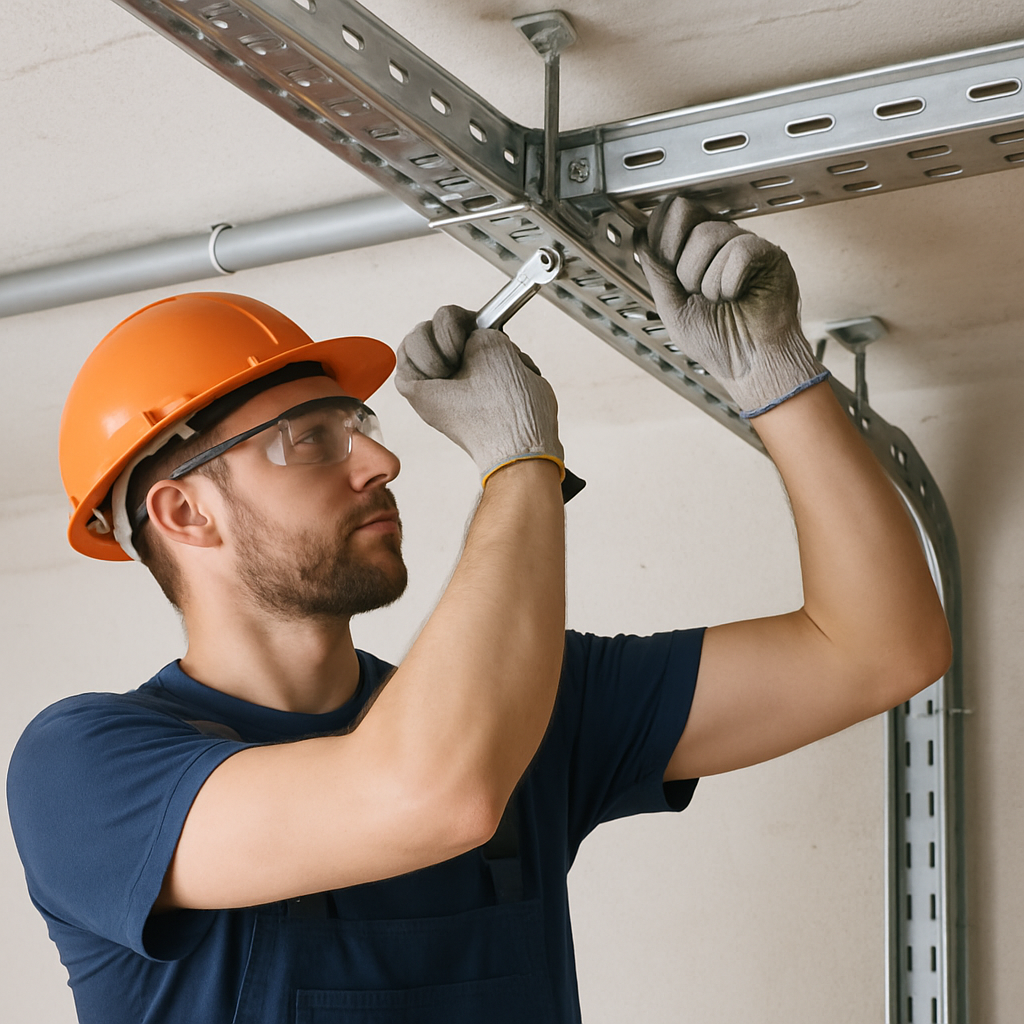

Ladder Cable Tray Installation

Proper installation of a ladder cable tray system is crucial for its effectiveness. The process typically involves the following steps:

1. Planning and Layout: Before installation, assess the area where the cable tray ladder will be installed. Consider the cable path, support points, and any obstacles that might affect the installation.
2. Supporting Structures: Secure the cable tray to walls, ceilings, or floors using brackets and hangers. The support structures should be spaced at intervals that prevent sagging and ensure stability.
3. Cable Arrangement: Once the tray is in place, arrange the cables within the ladder rungs. Ensure they are evenly distributed to maintain balance and avoid overloading any section of the tray.
4. Securing Cables: Use cable ties or clamps to secure the cables within the tray, preventing them from shifting or becoming entangled.

Benefits of Using a Cable Ladder System

A cable ladder system offers numerous advantages, such as:

• Improved Airflow: The open design of the ladder tray promotes better airflow around the cables, reducing the risk of overheating.
• Ease of Maintenance: With cables easily accessible, maintenance and troubleshooting become less time-consuming.
• Scalability: As your cable needs grow, additional cables can be laid into the tray without major changes to the existing setup.

In conclusion, a cable tray ladder is an efficient and versatile solution for managing cables in various settings. By understanding its specifications and following proper installation practices, you can ensure a safe and organized environment for your cable systems. Whether you’re dealing with a small office setup or a large industrial facility, the cable tray ladder is an indispensable tool in the realm of cable management.
