Material: Galvanized steel / Stainless steel / Aluminum
Type: Four-way / Cross / Solid bottom / Non-perforated
Size: 100mm / 150mm / 200mm / Custom
Surface: Powder-coated / Hot-dip galvanized
Application: Industrial / Cleanroom / Electrical / Data center

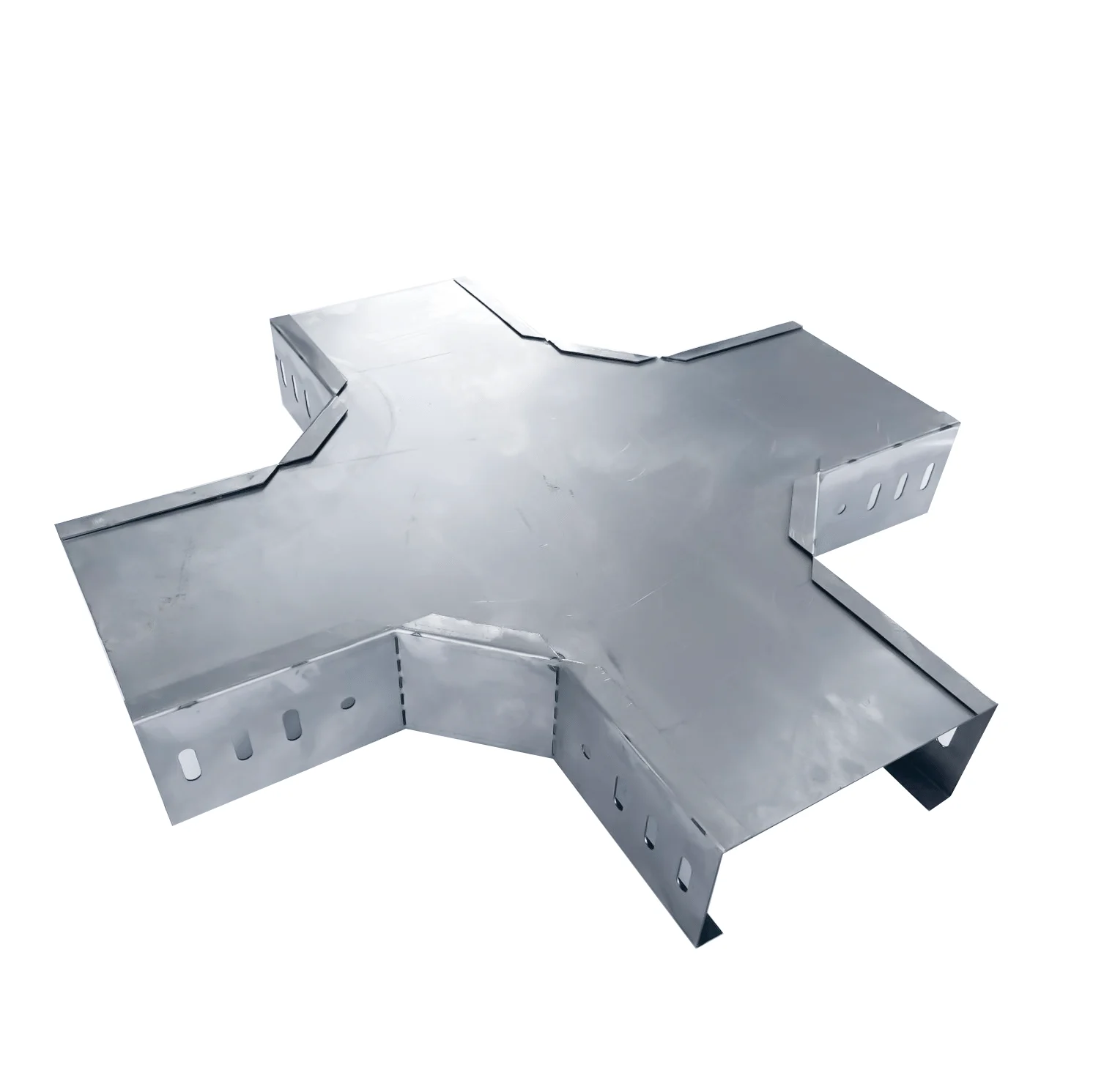

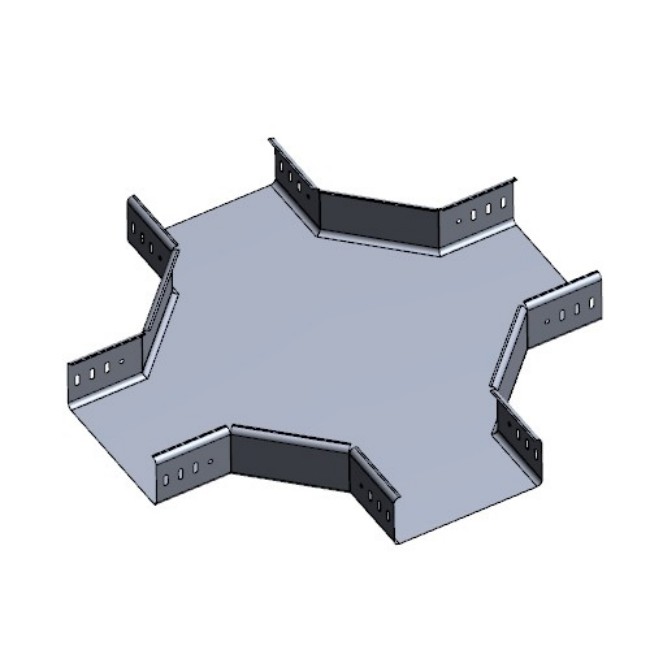

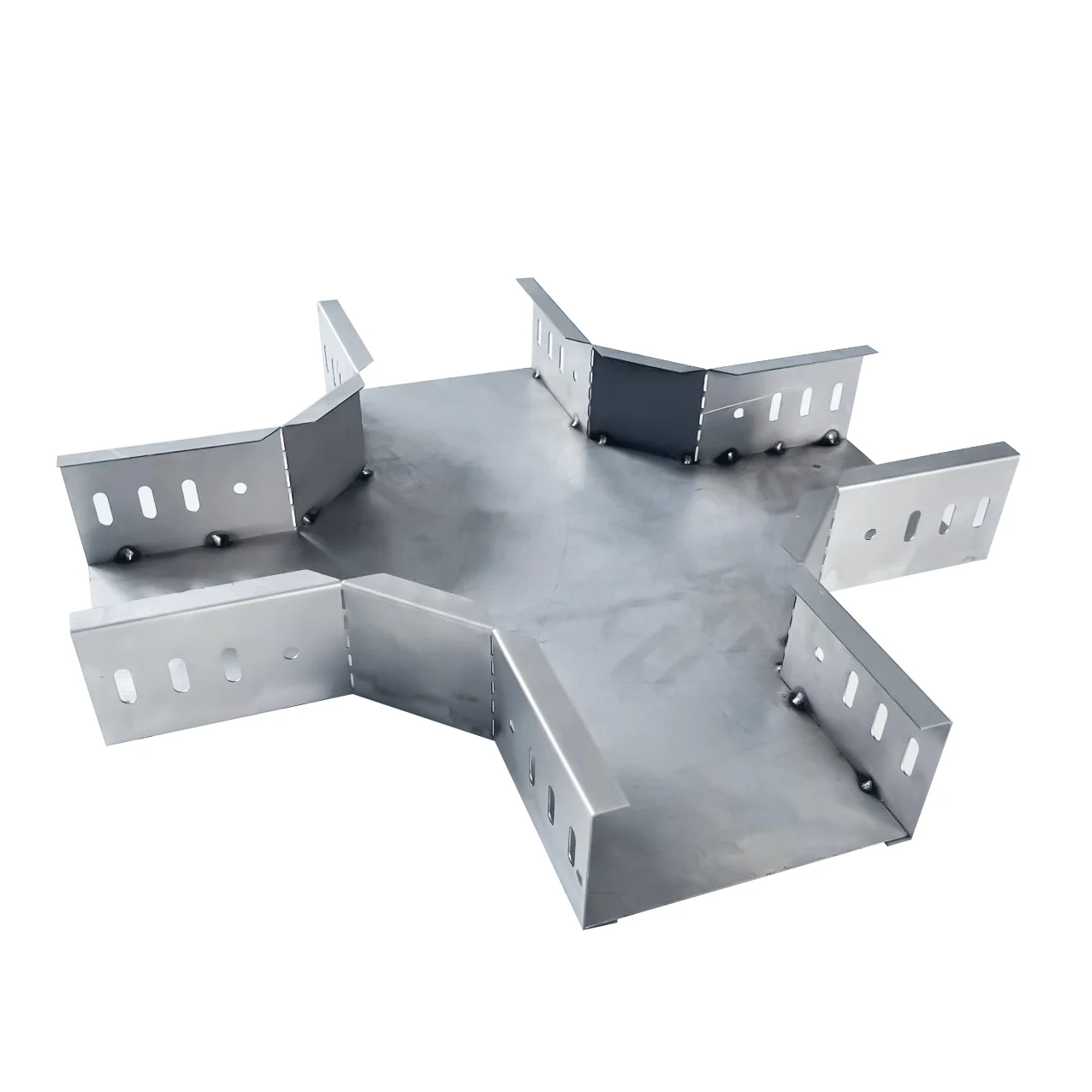

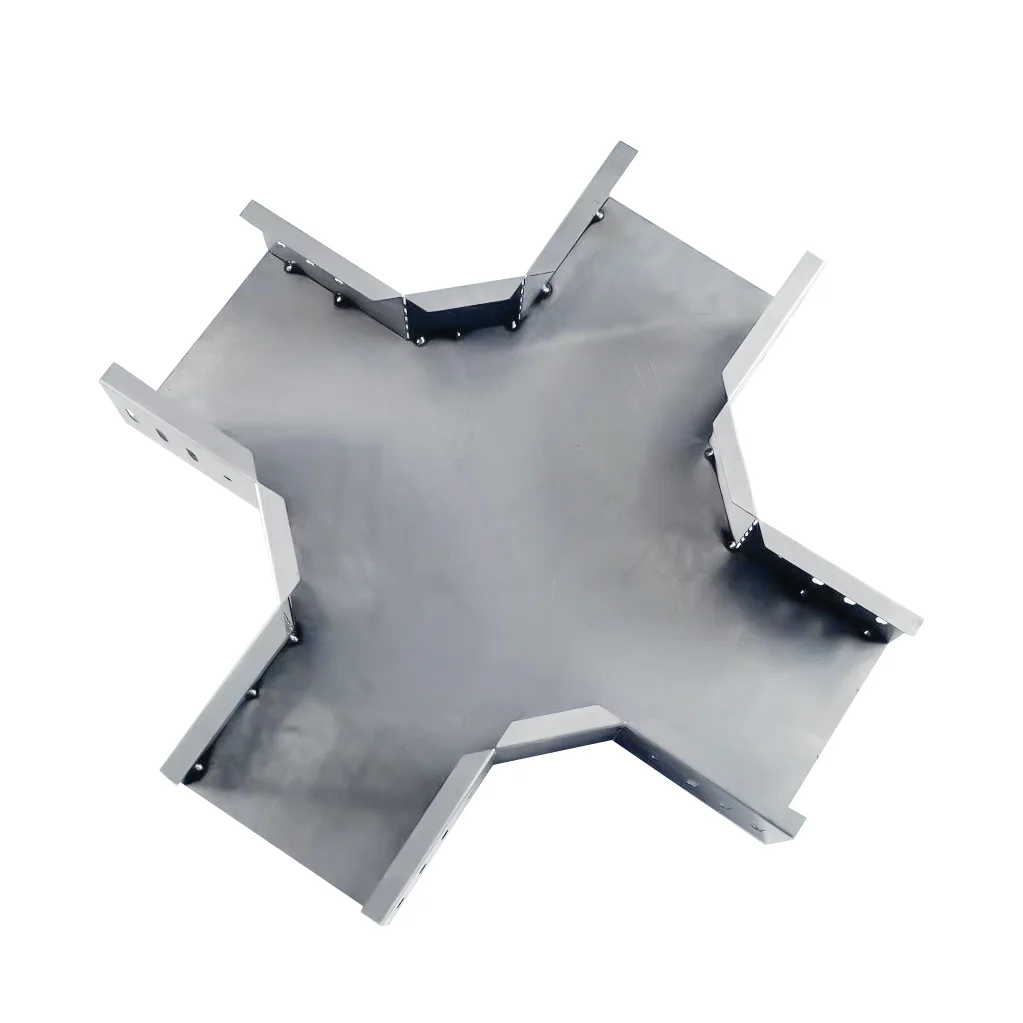

Our Four-Way Solid Bottom Cable Tray Cross Connector enables clean, four-directional cable routing for industrial and commercial installations. Designed with a non-perforated solid base, it prevents dust and debris intrusion, ideal for cleanrooms and precision environments.
Solid bottom (non-perforated) design for dust prevention
Four-way cross junction for structured cable management
Available in galvanized steel, stainless steel, or aluminum
Easy bolt-on or clamp-fixed installation
Surface options: powder-coated or hot-dip galvanized
Custom sizes and OEM service available
| Specification | Details |
|---|---|
| Product Type | Four-Way Solid Bottom Cable Tray |
| Material | Galvanized Steel / Stainless Steel / Aluminum |
| Width | 100mm / 150mm / 200mm / 300mm |
| Height | 50mm / 75mm / 100mm |
| Thickness | 1.2mm / 1.5mm / 2.0mm |
| Surface Finish | Powder-Coated / Hot-Dip Galvanized |
| Connection Type | Bolt-on / Clamp-fixed |
| Standard Compliance | IEC 61537 / NEMA VE 1 |
Electrical wiring installations
Data center cable routing
Industrial automation systems
Pharmaceutical or cleanroom environments
1. We insist on using the best raw materials.
2. We use laser cutting to guarantee the accuracy of our products.
3. OEM service available
4. 24-hours after-sales support.
5. Guaranteed delivery times
Zexin Electric had been dedicated to fabricating and providing one-stop cable support and electrical products and solutions to worldwide customers since its foundation in 2016. Our high- quality cable support products include cable tray, cable ladder, strut channel, solar module,steel pipe,matching accessories, etc. OEM and ODM are available.
